Web App Operation

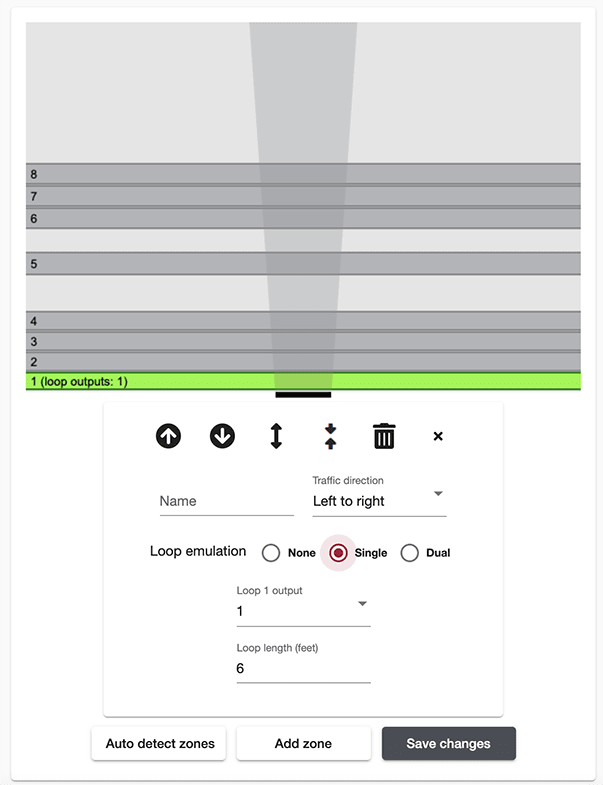

Emulate Loops

This function only appears for Echo devices that has been licensed for loop emulation via contact closures and when a contact closure device is selected on the Settings page.

• Click the Zones tab.

NOTE: If Loop emulation options do not appear, refresh the page in the browser.

2. Click on the desired zone to highlight it.

3. If emulating a single loop, select Single.

4. Enter the Loop output of the contact closure module that is associated with the emulated loop.

5. Enter a value for Loop length.

6. If emulating a dual loop, select Dual.

7. Enter the Loop output of the contact closure module that are assoicated with the emulated loops.

8. Enter values for Loop length and Trap length.

9. Click Save changes.
