Configuring IntelliSight Devices: Camera Setup

Camera Setup

The screen is used to find the cameras IP address, check the field of view from the camera display, and see other information about the IntelliSight camera.

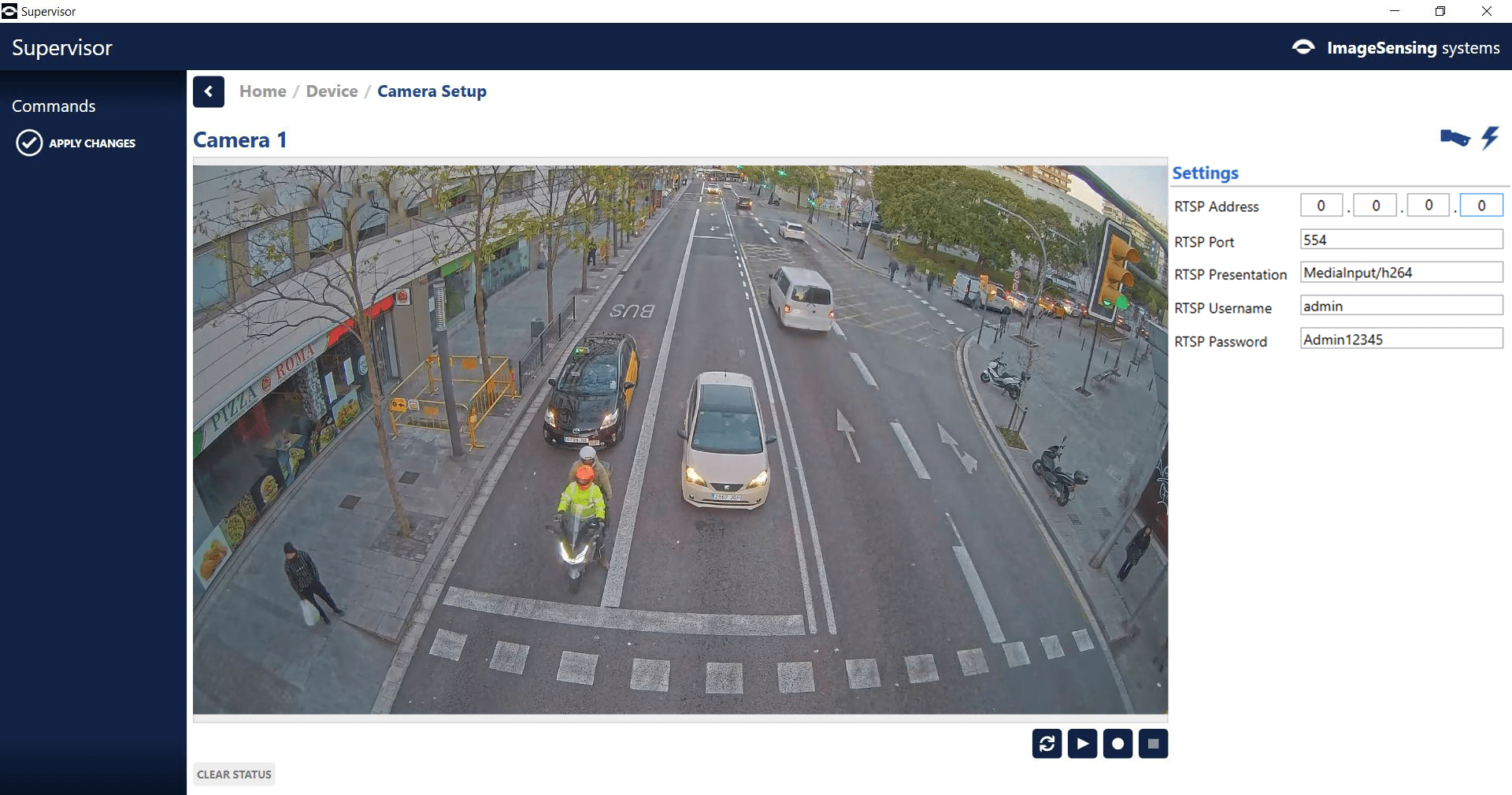

1. On the Device screen for the camera, click CAMERA SETUP. The following appears.
  • RSTP Address - IP address of the IntelliSight camera. FIND - click the FIND button to find the first camera. Click it again to find the next one, and so on. Once the desired camera is found for the position, clicking Apply will save the settings. Move on to the next camera in the list. DISABLE - click the DISABLE button if a camera was saved in the wrong order. This will free it up to be used in another position.
NOTE: This only needs to be done during the initial camera setup.
2. Click Apply Changes. 3. The RTSP Address will automatically find the camera and set it to the camera's IP Address. 4. Click the refresh button to verify that the video stream works. 5. Repeat steps 1-5 for any additional cameras. If a specific order is desired, unplug all the cameras and plug one in at a time to learn it. Repeat for each camera.
  • RTSP Port - should be 554 unless specifically changed by the user.
  • RTSP Presentation - defines the channel and stream you are trying to connect to. For IntelliSight cameras, this setting is MediaInput/h264.
  • RTSP Username - sets the username needed to log into the camera. The default is admin.
  • RTSP Password - password needed to log into the camera. The default is Admin12345.

IMPORTANT: Changes to any of the above settings will disable this stream until the device is restarted - after entering the camera settings, the processor will need to be restarted before streaming can resume.
6. To restart, go back to the Home screen. Make sure the processor is selected. Click RESTART DEVICES on the left side under the Commands section.
  • 7. Once restarted, the status bar will say Restart Device: In Progress. When complete, the status bar will say Restart Device: Completed. 8. Return to the Camera Setup screen. 9. Click the play button to start the video stream.
  • Zoom - zooms in or out to get the desired image.
10. Use the slider to zoom in or out until the desired image is shown. NOTE: It will take a few seconds to show the new image and text will be displayed indicating that the camera is being focused.
  • Warp - adjusts the image if lines do not appear straight.
NOTE: This feature may only be needed after the initial setup is complete and your zone lines do not appear straight. 11. If adjustments need to be made, move the slider one notch at a time until it gets to the desired look. 12. After entering all the settings, press Apply Changes. Under the video image, a message will be shown that shows the RTSP URL that was set. 13. Click the play button to start the video stream. 14. When complete, return to the Device screen and set the camera's calibration.
